Project Overview

A leading PPR pipe manufacturer in Pakistan specializing in hot water pipe production recently upgraded its production line with a customized PPR Pipe Extrusion Line.

The extrusion system is designed to support continuous high-speed production while maintaining accurate pipe diameter control, stable wall thickness, and smooth surface quality for hot water plumbing applications.

With increasing demand for residential and commercial hot water systems in Pakistan, the customer required a stable extrusion solution capable of long-cycle continuous operation and reliable pipe quality.

Customer Background

Customer: Hot Water Pipe Manufacturer, Pakistan
Industry: PPR Hot Water Pipe Production
Application: Residential & Commercial Hot Water Plumbing Systems

The customer mainly produces PPR pipes used for:

• Residential hot water distribution systems

• Commercial building plumbing systems

• Indoor pressure pipe applications

• Hot and cold water transportation networks

The project focused on improving production efficiency and maintaining dimensional stability during continuous manufacturing.

Engineering Challenge

In PPR hot water pipe manufacturing, production stability directly affects downstream installation quality and long-term pressure performance.

The customer focused on several key production challenges:

• Maintaining stable wall thickness during long production cycles

• Controlling pipe diameter fluctuation during extrusion

• Reducing cooling shrinkage deformation

• Improving continuous extrusion stability

• Ensuring synchronized haul-off and cutting performance

These factors are important for maintaining reliable pipe geometry and stable installation performance in hot water systems.

Tailored Production Solution

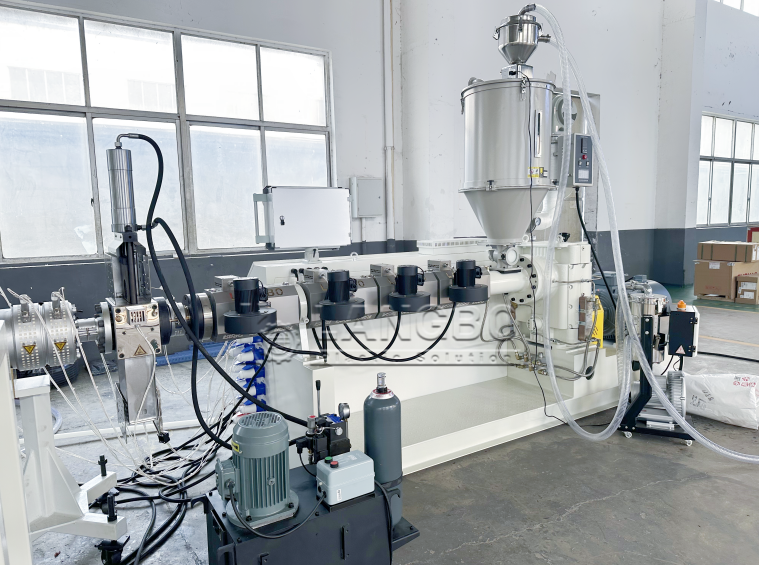

Single Screw Extruder

The extrusion line adopts a single screw extruder optimized for PPR material processing.

The system provides:

• Stable plasticization performance

• Uniform melt flow distribution

• Continuous extrusion pressure stability

during long production cycles.

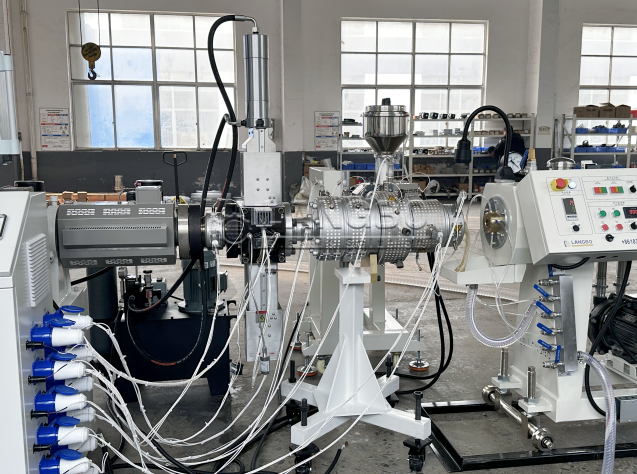

Pipe Die Head Design

The pipe die head uses an optimized flow channel structure designed for PPR pressure pipe applications.

The design helps maintain:

• Uniform wall thickness distribution

• Stable pipe diameter control

• Smooth inner pipe surface quality

during continuous extrusion operation.

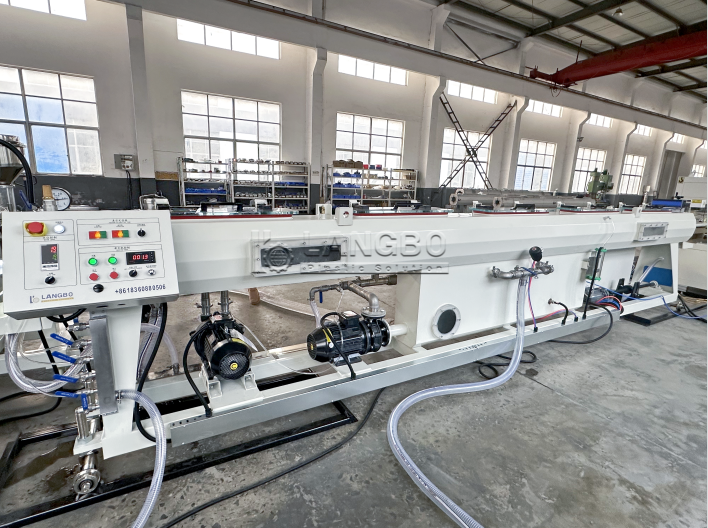

Vacuum Calibration System

The vacuum calibration tank stabilizes pipe geometry during the initial forming stage.

The system helps reduce:

• Pipe diameter fluctuation

• Ovality variation

• Cooling deformation

during continuous operation.

Multi-Stage Cooling System

The cooling system improves dimensional stability and maintains smooth pipe surface quality during long-cycle production.

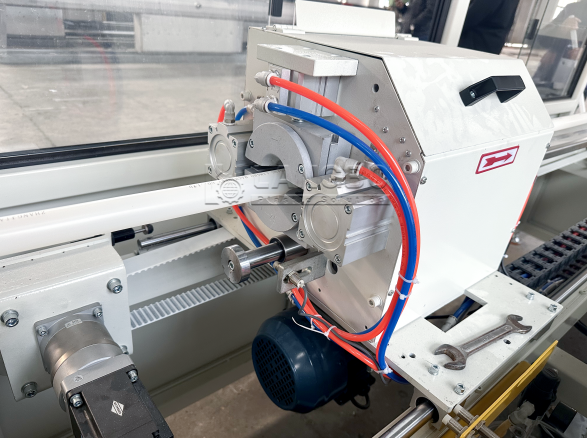

Haul-Off & Cutting Synchronization

The haul-off and cutting units synchronize automatically with extrusion speed to ensure:

• Stable pipe movement

• Accurate fixed-length cutting

• Continuous production efficiency

PLC Automatic Control System

The PLC control system coordinates extrusion, calibration, haul-off, and cutting operations automatically, helping reduce manual adjustment during production.

Production Results

Customer Feedback

After commissioning, the Pakistan customer reported stable operation during daily hot water pipe production.

According to the production team:

• The extrusion line maintained stable pipe diameter and wall thickness during continuous operation

• Vacuum calibration stability improved overall pipe geometry consistency

• The synchronized cutting system reduced dimensional deviation in finished pipes

• Continuous production efficiency improved with reduced downtime and simplified operation

The customer also confirmed that the extrusion system performed steadily during long production cycles for residential and commercial hot water pipe applications.

Application Areas

The PPR pipes produced by this extrusion line are suitable for:

• Residential hot water plumbing systems

• Commercial building water supply systems

• Indoor pressure pipe applications

• Hot and cold water transportation systems

• Building infrastructure projects

Conclusion

This project demonstrates that stable hot water pipe production depends on coordinated control of extrusion, calibration, cooling, haul-off, and cutting systems.

By optimizing each production stage, the PPR Pipe Extrusion Line supplied for the Pakistan project provides stable, continuous, and efficient manufacturing performance for hot water pipe applications.
